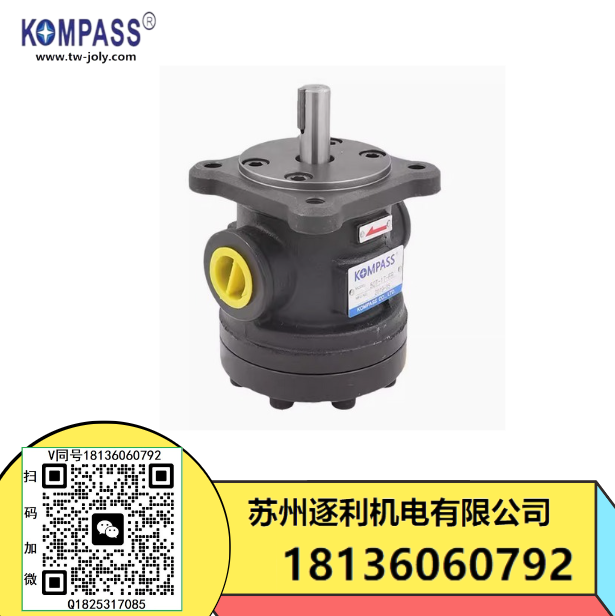

KOMPASS臺灣康百世50T-07/12/14/17/20/23/26/30/36/39-FR 葉片泵

如何衡量液壓系統布局是否合理呢？

液壓系統布局，這一點相信大家應該都可以理解。液壓系統 的布局就是說所有液壓元件在整個液壓系統中的擺放是否整齊合理。如何看一臺小型液壓站布局是否合理呢？這里通過3點來衡量：

1.維護是否合理。

很多液壓泵站在使用多年后出現某些故障需要對液壓站進行一些簡單的更換。可是拿著工具一看，郁悶了，沒處下手。工具在狹小的空間里施展不開。不得不拆開所有元件，隻需要換一個小小的密封圈而已。這樣的液壓站在維護方面非常不合理，非常不方便。所以維護的合理性還是有必要作爲衡量整臺液壓系統好壞的條件之一。

2.散熱布局是否合理。

散熱方面，液壓泵站在運行的時候液壓油和液壓管道的摩擦?xí)b生一些熱量。這些熱能量如果不及時散去讓所有液壓元件都出于高溫運行將降低液壓元件的使用壽命。由于液壓油的特殊性摩擦産生的熱量不大。當然這一點也和液壓系統的設計有關，在這里我們隻需要看位置布局是否美觀外型要求是不是跟我們需求的一樣。

3.外觀和整體設計是否合理。

整體外觀基本屬于定制液壓站客戶的主觀意見。因爲很多液壓站使用的時候位置體積是有限的，隻需要看成品是否符合自己的定制意向。
